Calm: Kubernetes¶

Using Kubernetes BP v2.0.0¶

• Clone k8s 2.0 blueprint to your project

• Update variables

  Name	Value
  KUBE_CLUSTER_NAME	kube-calm
  KUBE_IMAGE_TAG	v1.10.5_coreos.0
  DOCKER_VERSION	17.03.2.ce
  KUBE_CLUSTER_SUBNET	10.200.0.0/16
  KUBE_SERVICE_SUBNET	10.32.0.0/24
  KUBE_DNS_IP	10.32.0.10
  PE_CLUSTER_IP	10.132.68.55, based on your env
  PE_DATA_SERVICE_IP	10.132.68.56, based on your env
  PE_USERNAME	admin, based on your env
  PE_PASSWORD	***, based on your env
  PE_CONTAINER_NAME	SelfServiceContainer
  INSTANCE_PUBLIC_KEY	***, based on your key

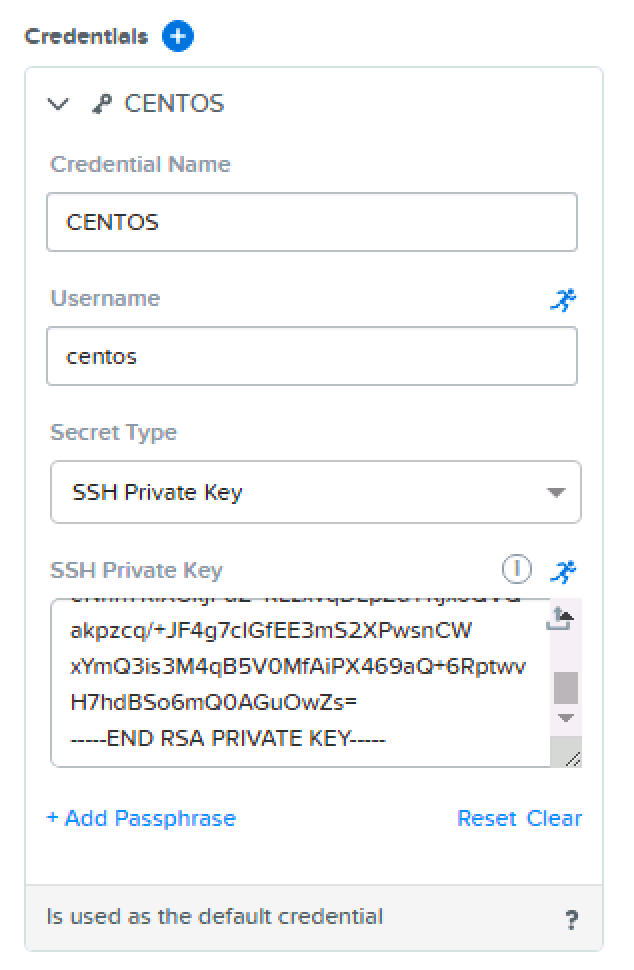

• update credentials



• customized vm image based on default image (http://download.nutanix.com/calm/CentOS-7-x86_64-GenericCloud.qcow2)

  • download some package to /home/centos (sample), due to network limitation in some region

    #part1
    ETCD_VERSION="v3.2.24"
    KUBE_IMAGE_TAG="v1.10.5_coreos.0"
    VERSION=$(echo "${KUBELET_IMAGE_TAG}" | tr "_" " " | awk '{print $1}')
    wget -q "https://github.com/coreos/etcd/releases/download/${ETCD_VERSION}/etcd-${ETCD_VERSION}-linux-amd64.tar.gz"
    wget -q https://github.com/containernetworking/plugins/releases/download/v0.6.0/cni-plugins-amd64-v0.6.0.tgz
    wget -q https://storage.googleapis.com/kubernetes-release/release/${VERSION}/bin/linux/amd64/kubelet
    #part2
    wget -q https://pkg.cfssl.org/R1.2/cfssl_linux-amd64 https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64
    wget -q https://storage.googleapis.com/kubernetes-release/release/${VERSION}/bin/linux/amd64/kubectl
    wget -q "https://storage.googleapis.com/kubernetes-helm/helm-v2.8.2-linux-amd64.tar.gz"


  • yum update

    yum -y update


  • clean vm

    • remove MAC entry in /etc/sysconfig/network-scripts/ifcfg-eth0
    • cp /dev/null /etc/udev/rules.d/70-persistent-net.rules

  • create image from this vm

    • using acli vm.get vm_name to get vmdisk uuid of scsi 0
    • confirm file existed `` nfs_ls -l /SelfServiceContainer/.acropolis/vmdisk/vmdisk_uuid ``
    • login to PC - explorer - image - add image - url: nfs://cvm_ip//SelfServiceContainer/.acropolis/vmdisk/vmdisk_uuid
    • input image name as you needed

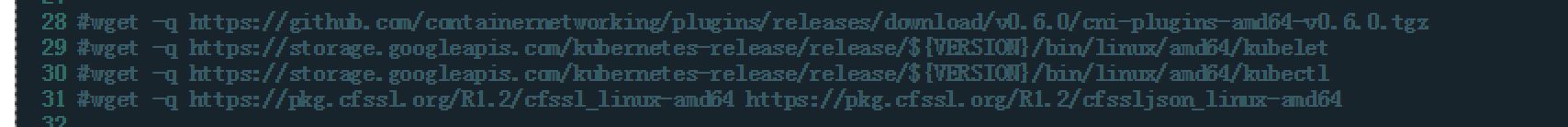

• comment lines in ‘package install’ task (master & minion), because we have download it before

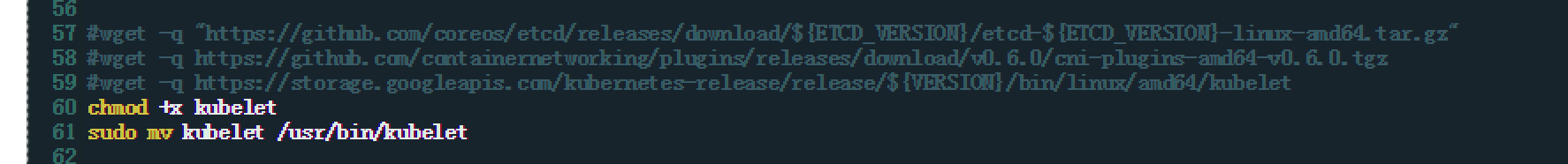

  • on master - part1

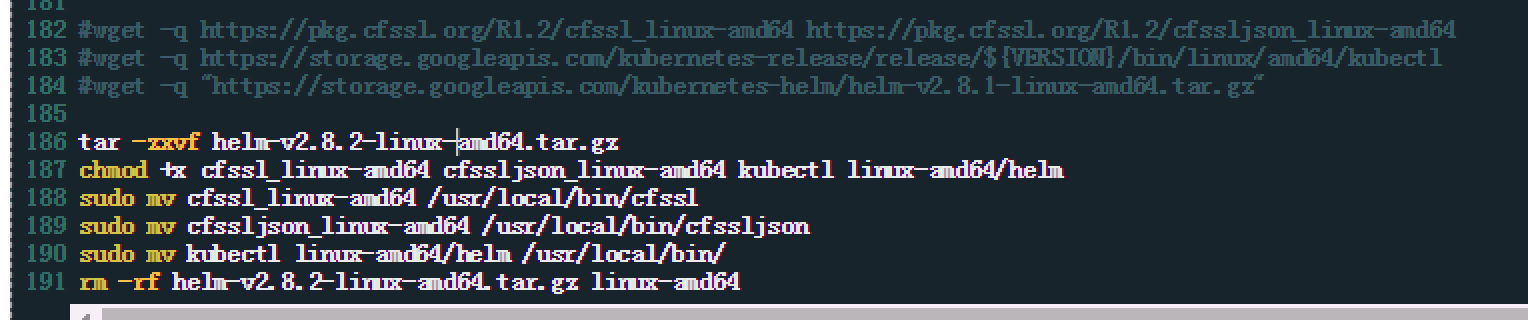

  • on master - part2, helm version is 2.8.2



  • on minion

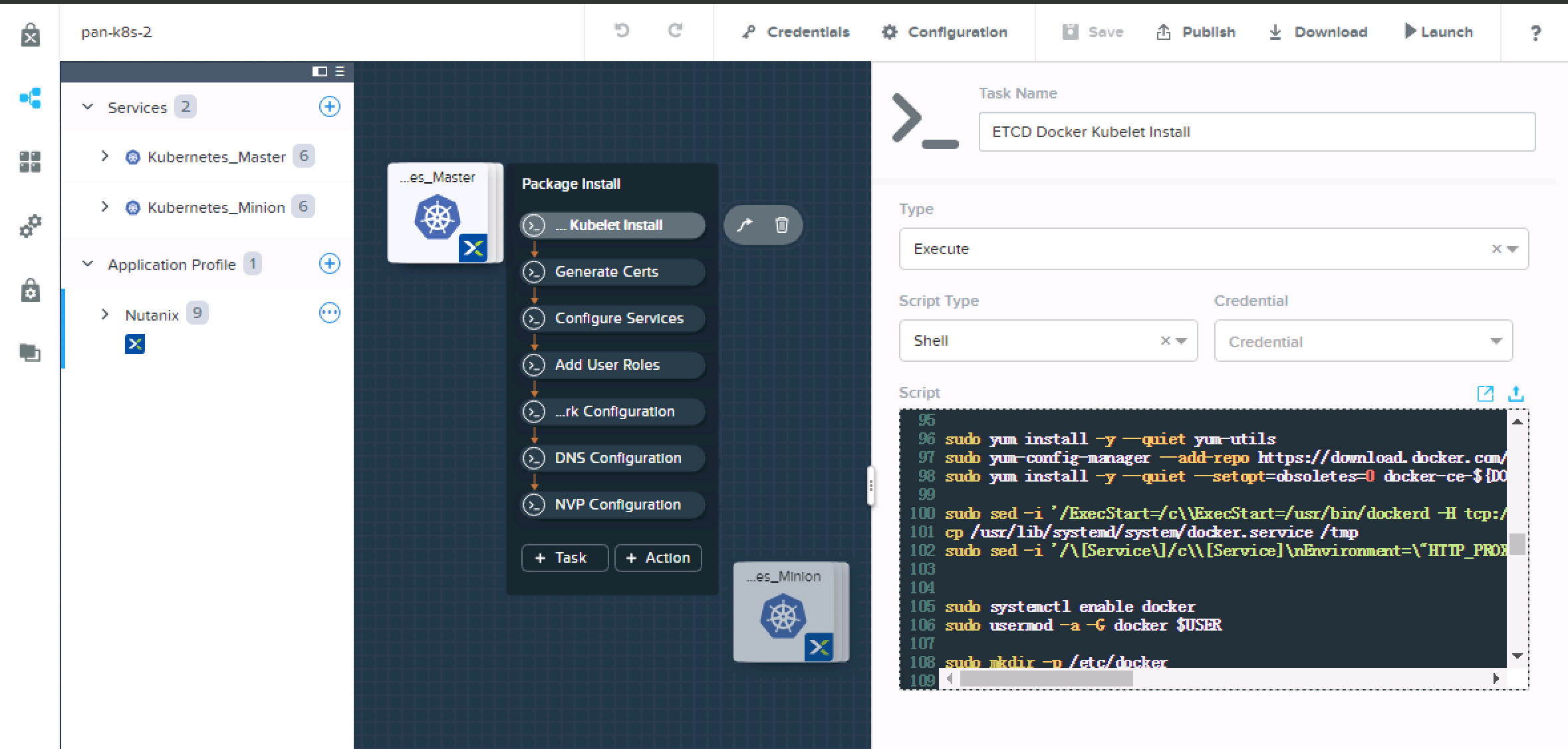

• add environemnt to docker service (master & minion), my proxy ip address is 10.132.71.38

  sudo sed -i '/ExecStart=/c\\ExecStart=/usr/bin/dockerd -H tcp://0.0.0.0:2375 -H unix:///var/run/docker.sock' /usr/lib/systemd/system/docker.service
  #add following lines
  cp /usr/lib/systemd/system/docker.service /tmp
  sudo sed -i '/\[Service\]/c\\[Service]\nEnvironment=\"HTTP_PROXY=http://10.132.71.38:1080/\"' /usr/lib/systemd/system/docker.service

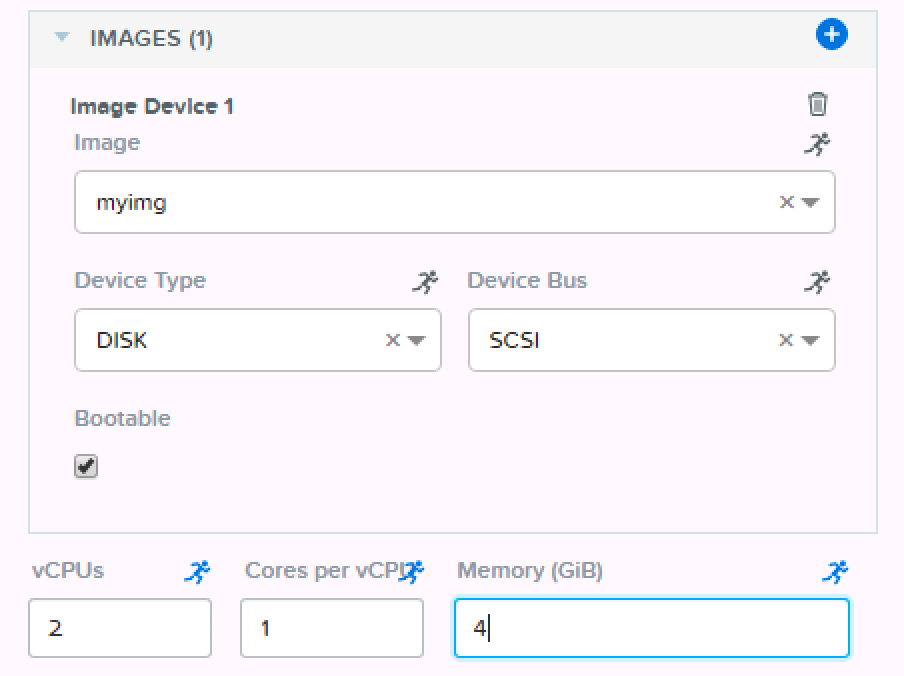

• update vm image & cpu/memory (master & minion)

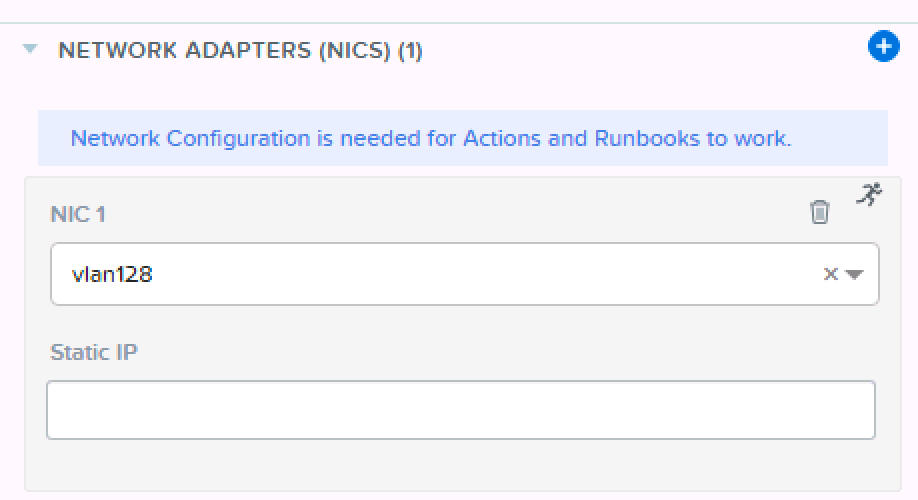

• update vm nic (master & minion)

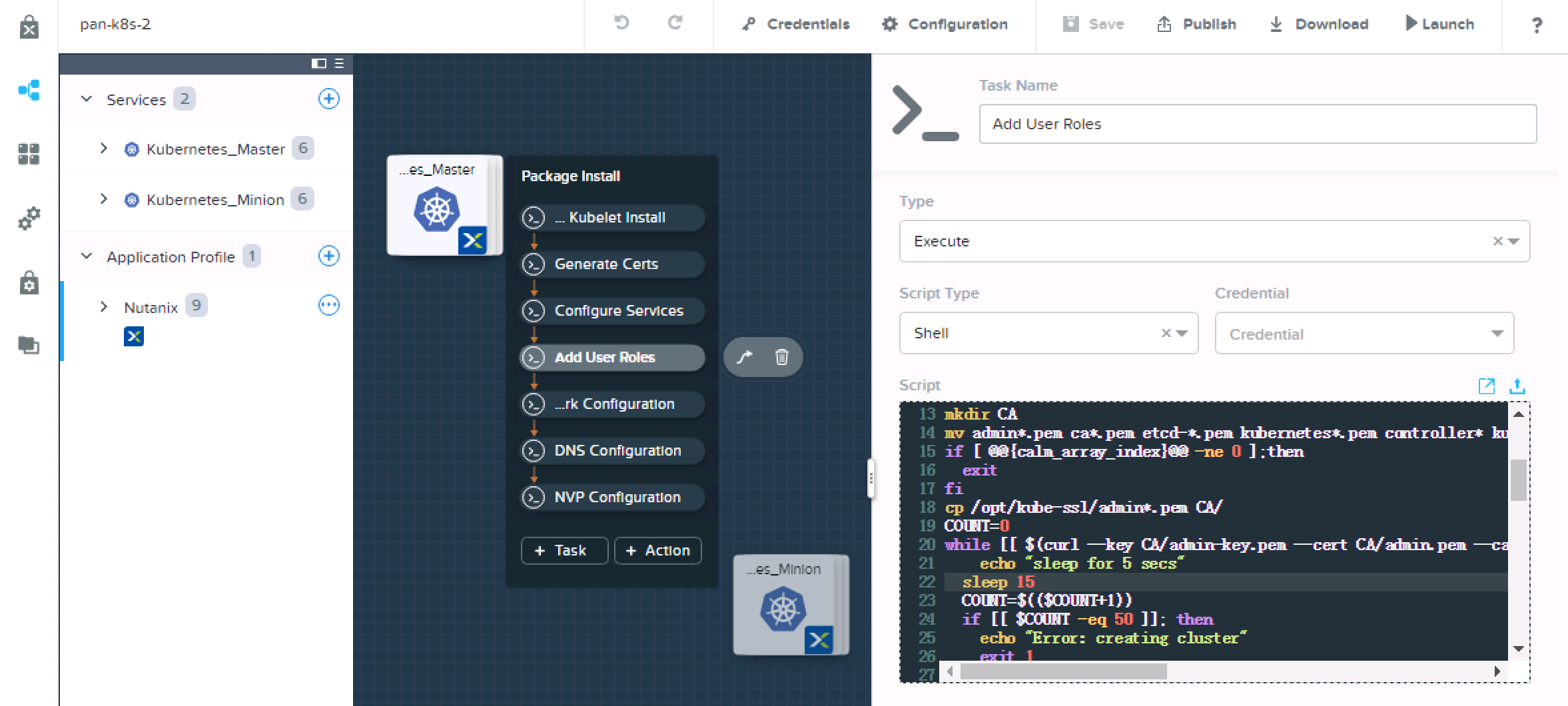

• add more waiting time (line 22: change 5 to 15), due to download through proxy is slower than normal.

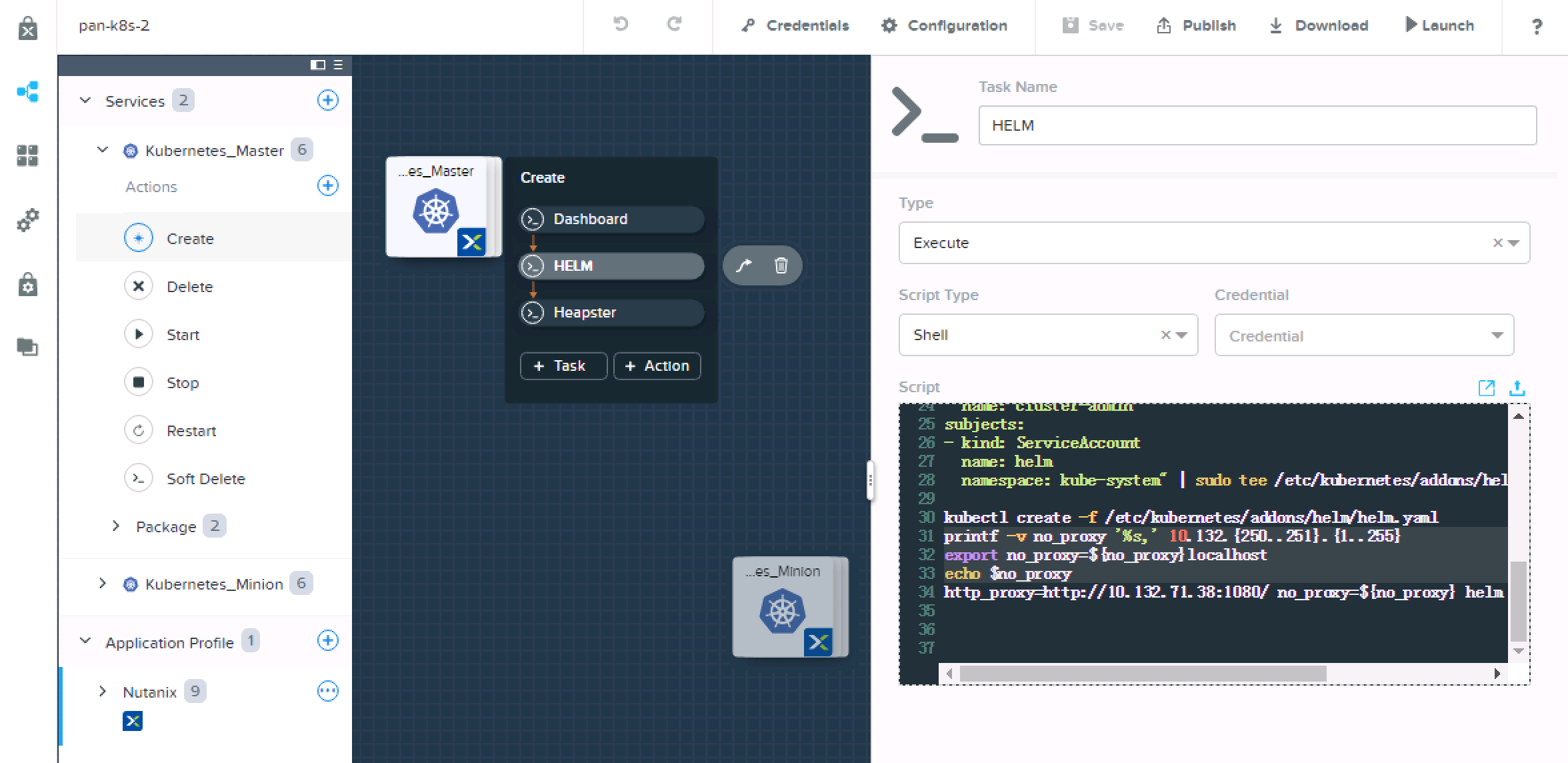

• update HELM script, add using http proxy (10.132.71.38) when helm init

  printf -v no_proxy '%s,' 10.132.249.{1..255}
  export no_proxy=${no_proxy}localhost
  echo $no_proxy
  http_proxy=http://10.132.71.38:1080/ no_proxy=${no_proxy} helm init --service-account helm




• login to controller0 to execute kubectl get no

download blueprint HERE

Using Kubernetes BP v1.0.0¶

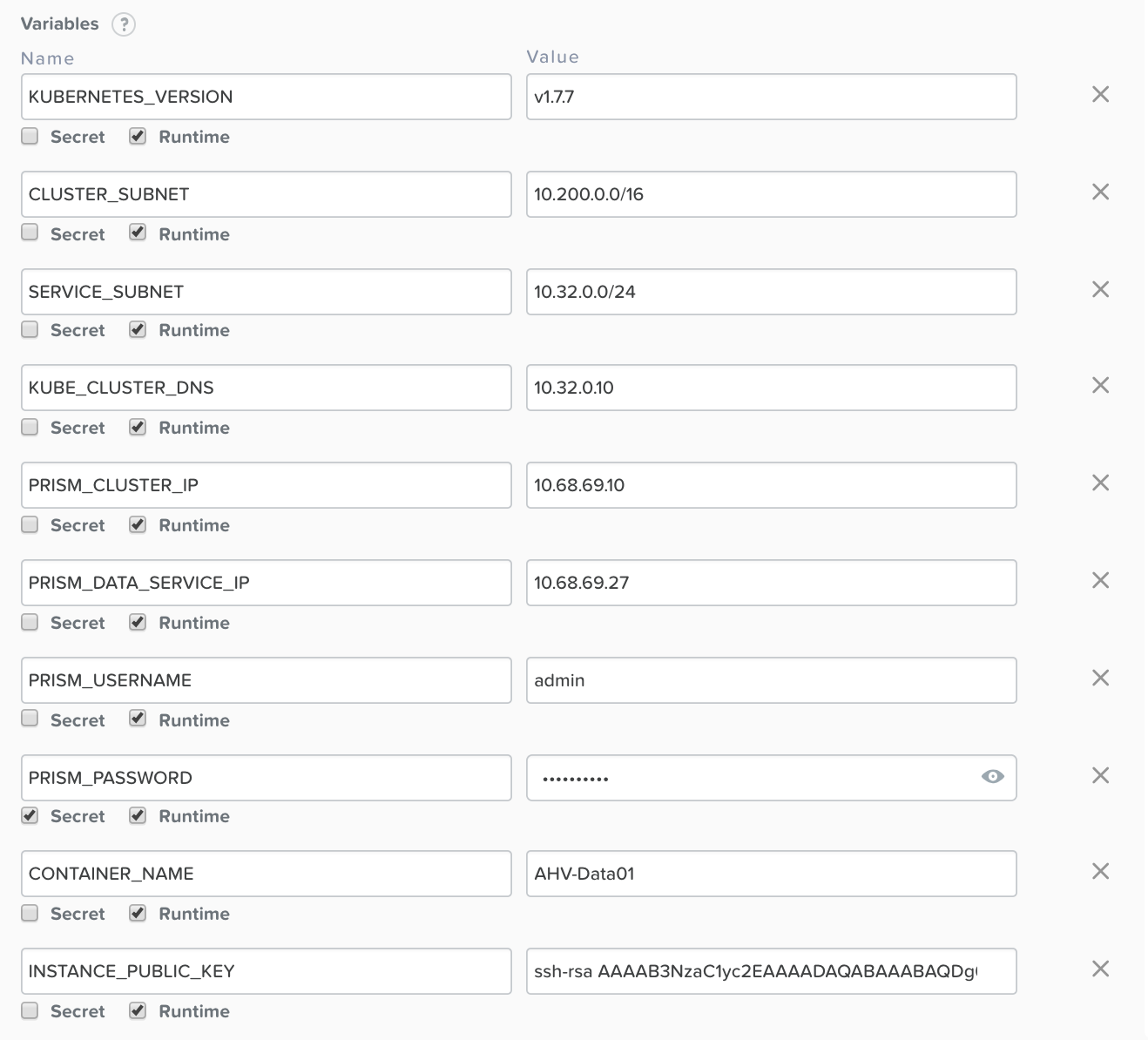

Variables¶

Clone kubernetes blueprint v1.0.0 from market place to your project, edit variables to suite your environment.

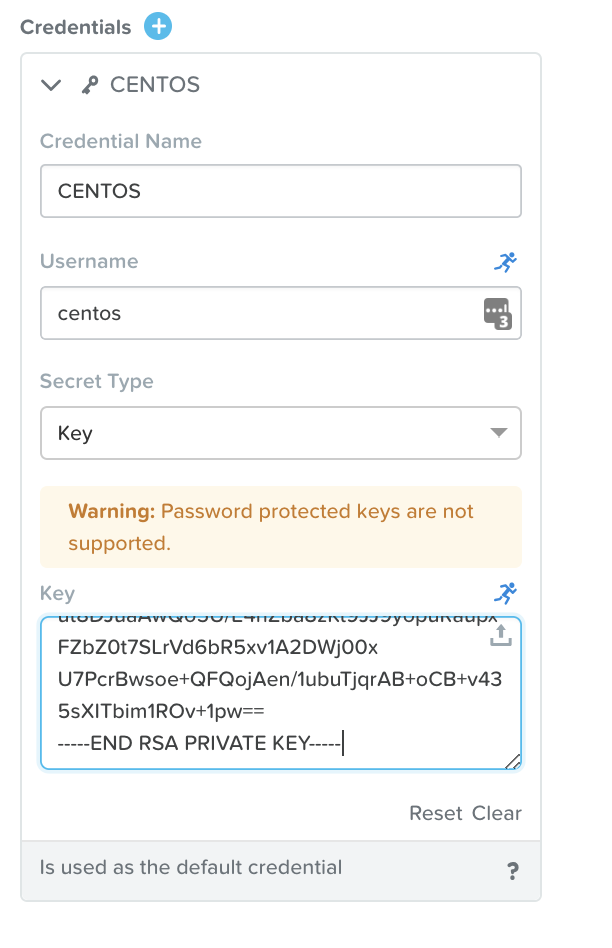

Credentials¶

Edit default user, add private key to CENTOS. This user will be created with cloud-init script and transfer public key to authorized_keys file (see images above) you need put the private key in here (see image below)

Service¶

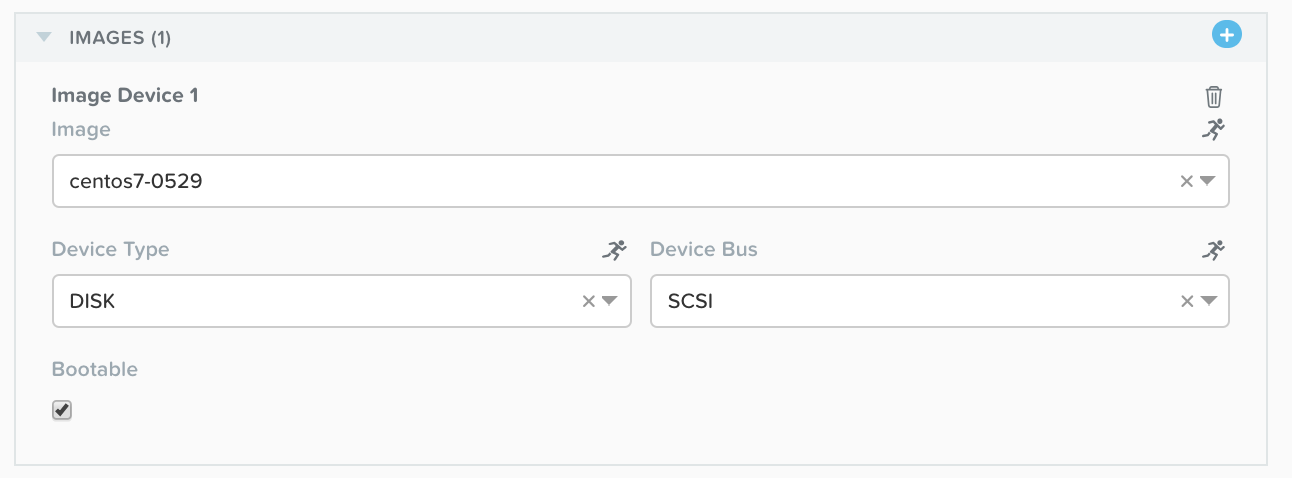

this image is based on default nutanix image (http://download.nutanix.com/calm/CentOS-7-x86_64-GenericCloud.qcow2). I just download some packages i needed first due to network issue in China.

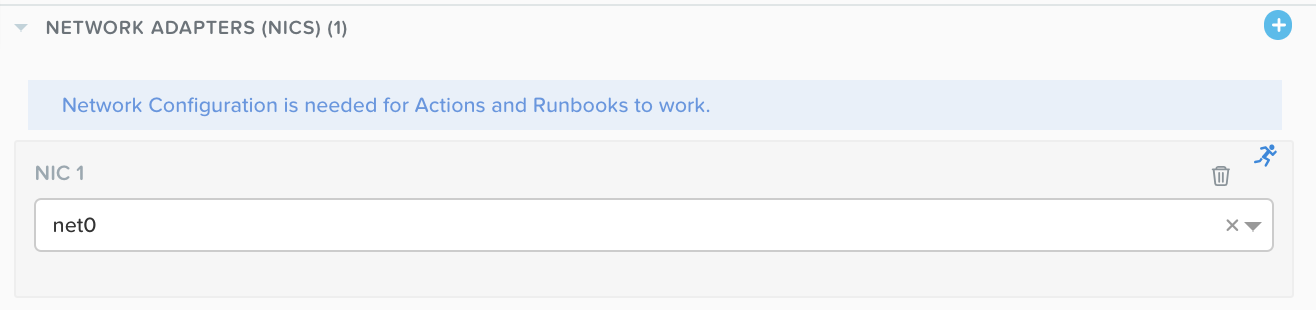

Choose a network with IPAM enabled or has DHCP server in that segment

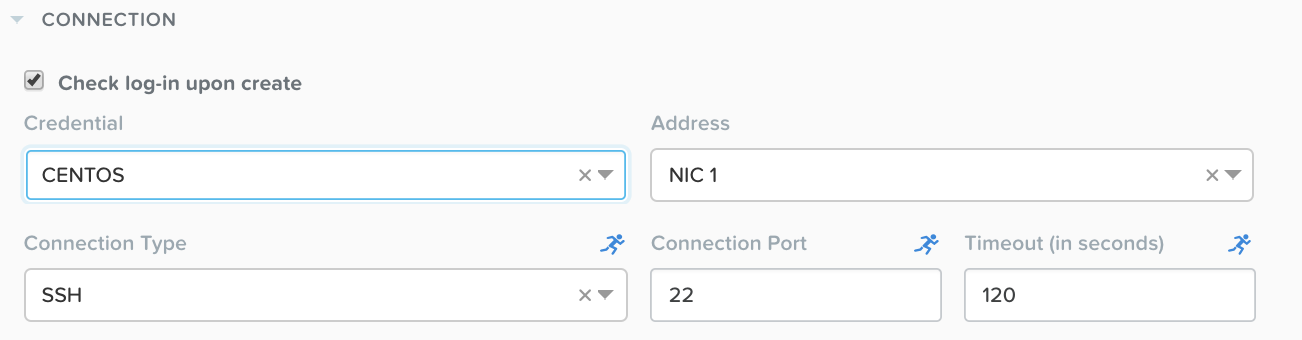

Choose default user for login check-in

Task¶

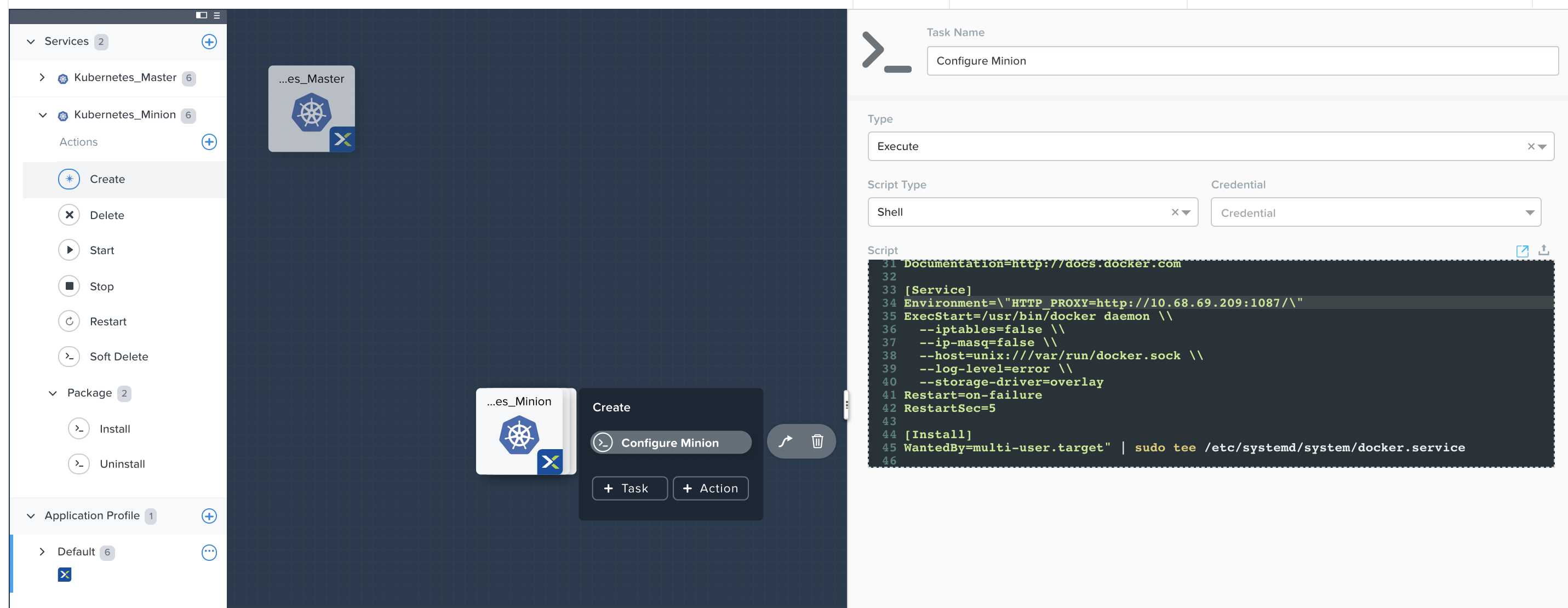

Edit task in minion (K8SM)

• comment all wget packages due to we have download them in advance
• add environment to docker system script, to ensure download images through proxy, especially when your demo environment in C_H_I_N_A

Environment=\"HTTP_PROXY=http://10.132.71.38:1080/\"

Edit task in controller (K8SC)

• comment all wget packages due to we have download them in advance

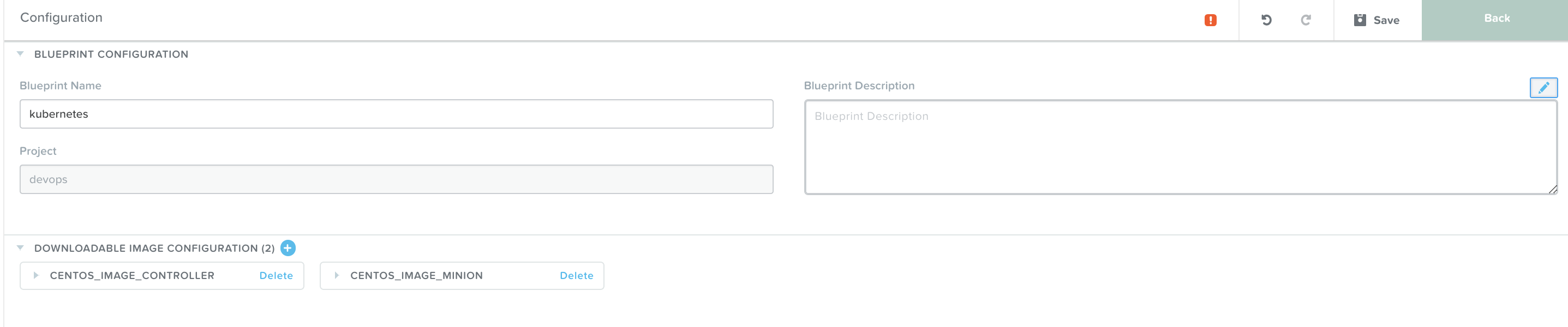

Other¶

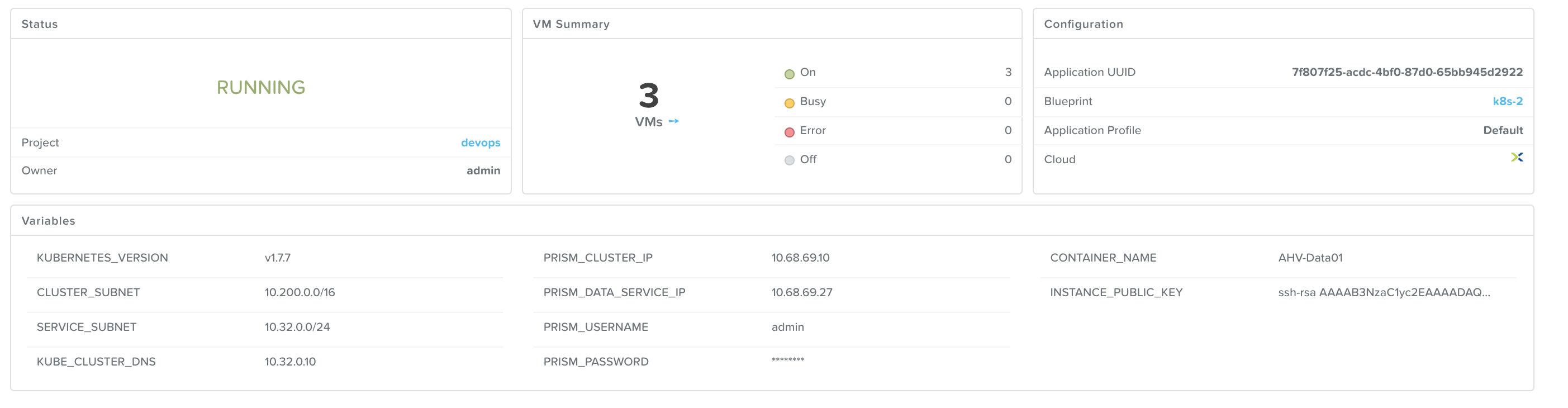

Launch¶
